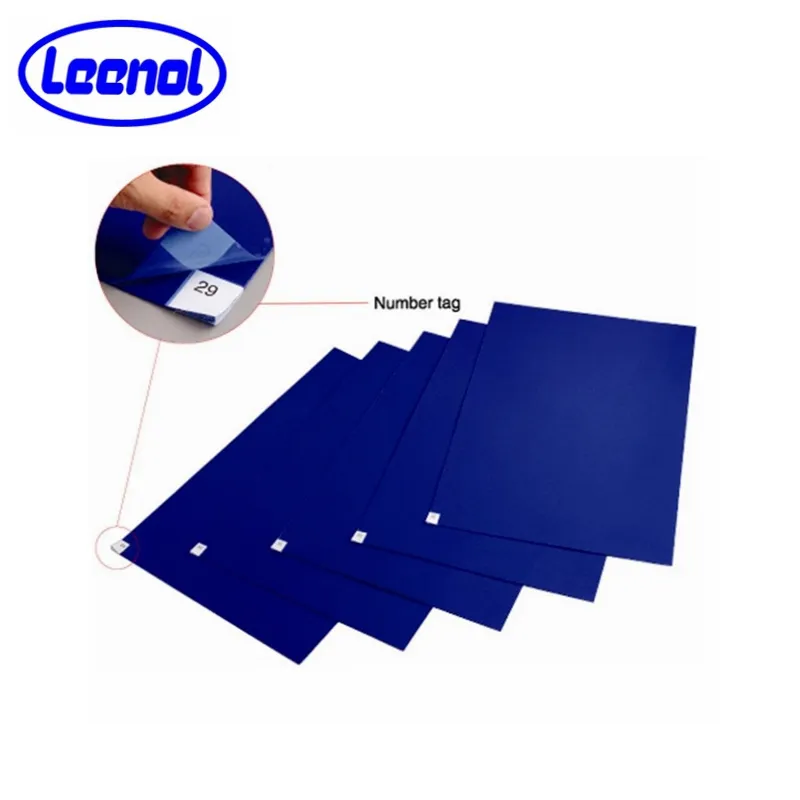

Using for Cleanroom 18''*36' Stepping Pad Can Be Tearable Sticky Mat
Sticky Mat Using for CleanroomSpecification ModelLN-1550095 Sticky Mat ColorBlue, white, Green, Red.etc. Size18"*36", 18"*45",24"*36, 26"*45"Any size can be customizedFilm materialPEFilm thickness30-50μmTensile strength>1.2 kg/cm Remove dirt effect &g......
Send Inquiry
Product Description

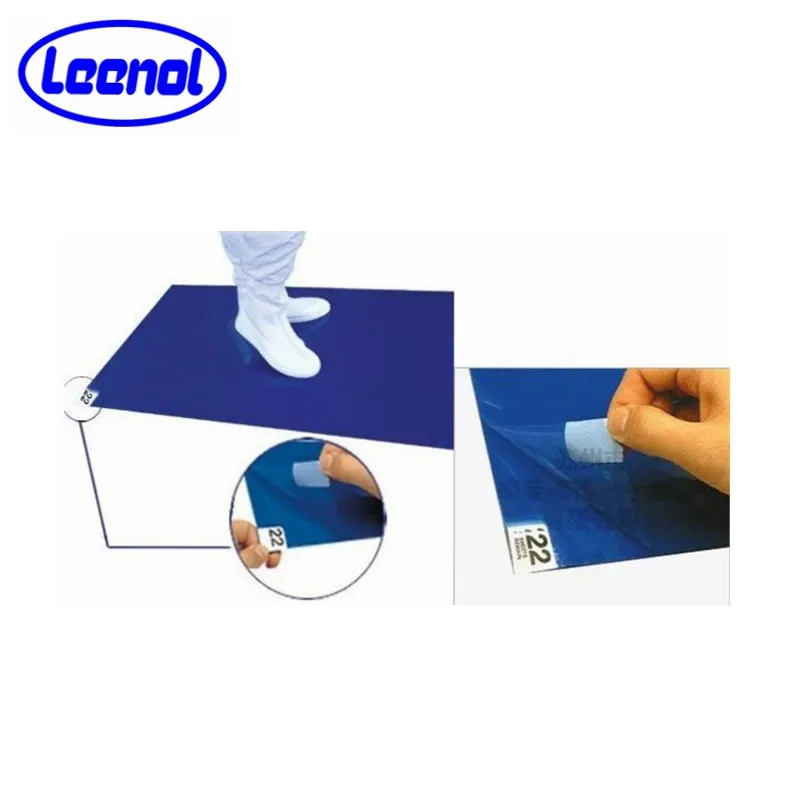

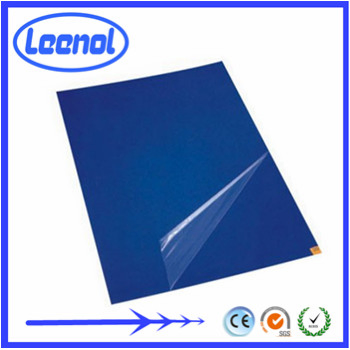

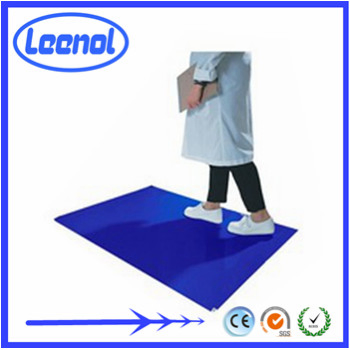

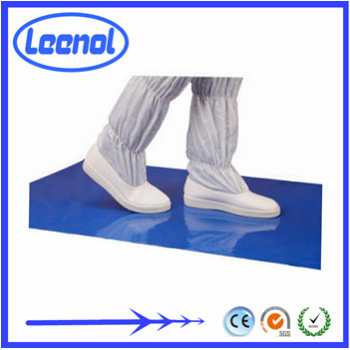

Sticky Mat Using for Cleanroom
Specification
Model | LN-1550095 Sticky Mat |
Color | Blue, white, Green, Red.etc. |
Size | 18"*36", 18"*45",24"*36, 26"*45" Any size can be customized |
Film material | PE |
Film thickness | 30-50μm |
Tensile strength | >1.2 kg/cm |
| Remove dirt effect | >99.9% |

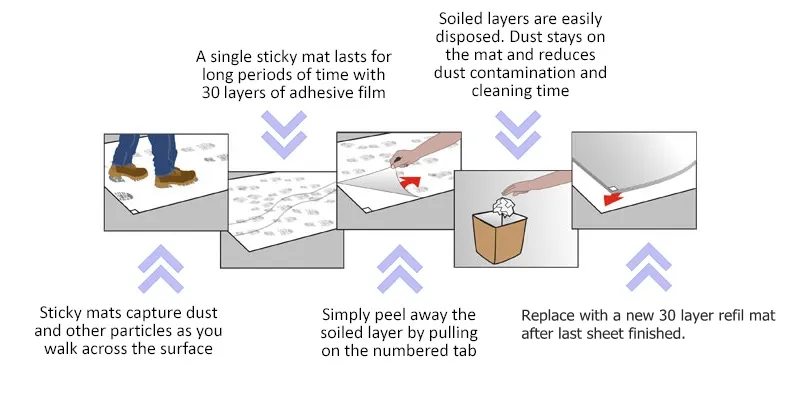

Usage:
Technical Data Sheet
| No. | Test Item | Test Standard | Test result |
| 1 | Longitudinal tensile strength(MPA) | ≥10 | 20 |
| 2 | Lateral tensile strength(MPA) | ≥8 | 17 |
| 3 | Longitudinal elongation at break(%) | ≥150 | 210 |
| 4 | Lateral elongation at break(%) | ≥200 | 255 |
| 5 | State of glue | -- | evenly |
| 6 | Thickness | 0.035MM +-0.005 | 0.035MM |
| 7 | Initial adhesion(G/IN2) | LOOPTACK | 500 |
| 8 | 180 deg. peel strength(SS.G/25MM) | GB2792-81 | 380 |
| 9 | Cohension(MIN) | GB4851-98 | 1440 |
| 10 | Temperature and Humidity Test | Q/DT1-2004 | 80 degree |
| 11 | Heat-resistance test | Q/DT1-2004 | -- |
| 12 | Aging performance | Q/DT1-2004 | 8 months |

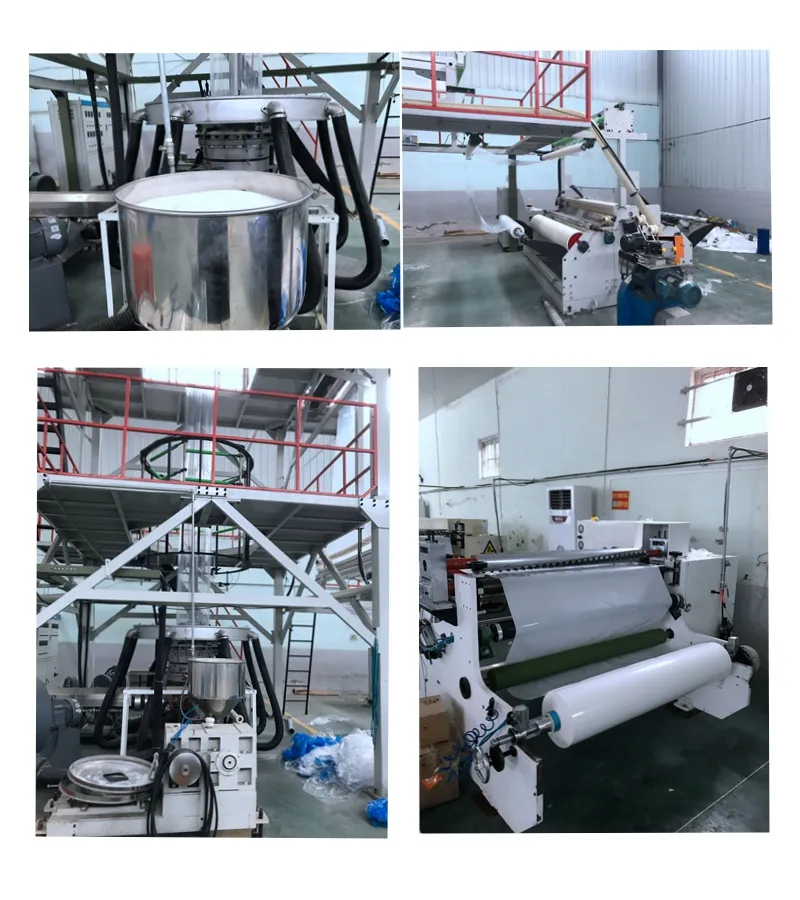

About Sticky Mat Factory production picture

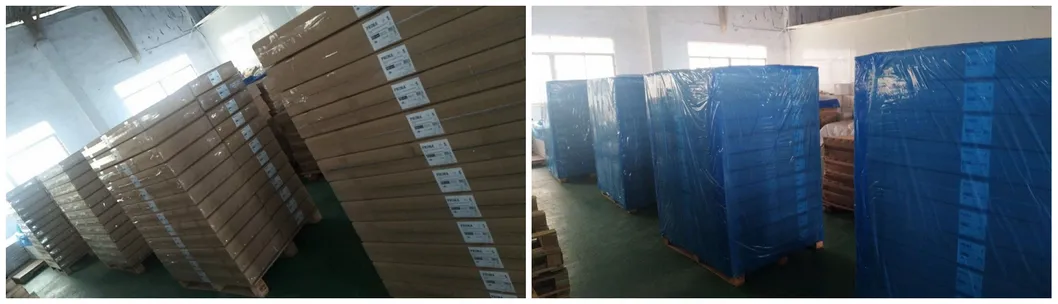

Packing
| Size | Packing | CTN size | CTN weight |
| 18*36"(30um) | 10pcs/box,5 boxes/ctn | 48*93*10cm | 23kg |
| 24*36"(30um) | 10pcs/box,5 boxes/ctn | 63*93*10cm | 26kg |
| 18*45"(30um) | 10pcs/box,5 boxes/ctn | 48*118*10cm | 30kg |
| 26*45"(30um) | 10pcs/box,5 boxes/ctn | 68*118*10cm | 35kg |
Any other questions pls feel free to contact us.
