Sumring Wide Range Motion Sensor/Detector
SUMRING Wide Range Motion Sensor/Detector Main features:PIR Detector: Wireless Wide Angle PIR Detector SR-615Rwireless transmitting digital signallow power indicationASIC adoptedAutomatic temperature compensationLow power consumption, long battery lifeSMT adopted, anti-RFI & anti-EMI Technical s......
Send Inquiry
Product Description

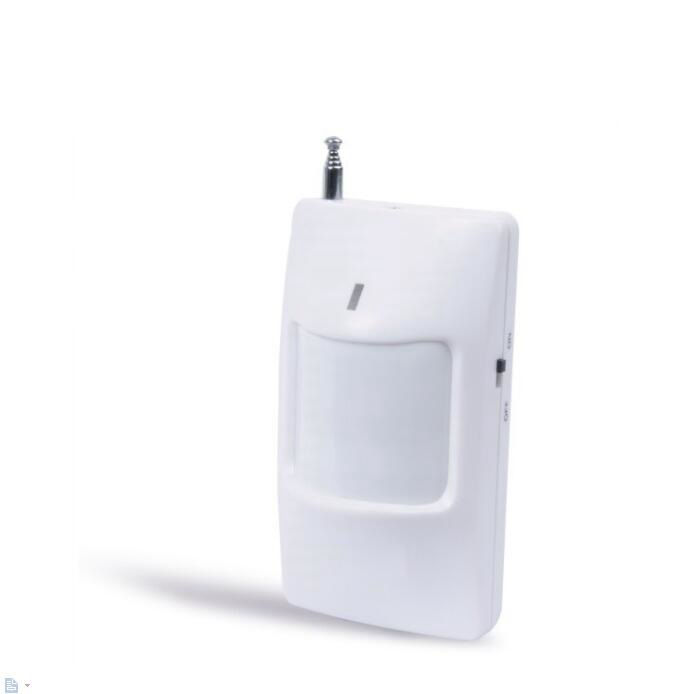

SUMRING Wide Range Motion Sensor/Detector
Main features:
PIR Detector: Wireless Wide Angle PIR Detector SR-615R
wireless transmitting digital signal
low power indication
ASIC adopted
Automatic temperature compensation
Low power consumption, long battery life
SMT adopted, anti-RFI & anti-EMI
| Operating voltage | 9V battery |
| Standby current | less than 25uA |
| Alarm current | less than 15mA |
| Operating temp | -10 to +50 degrees |
| Installation mode | wall mounted |
| Installation height | about 2m |

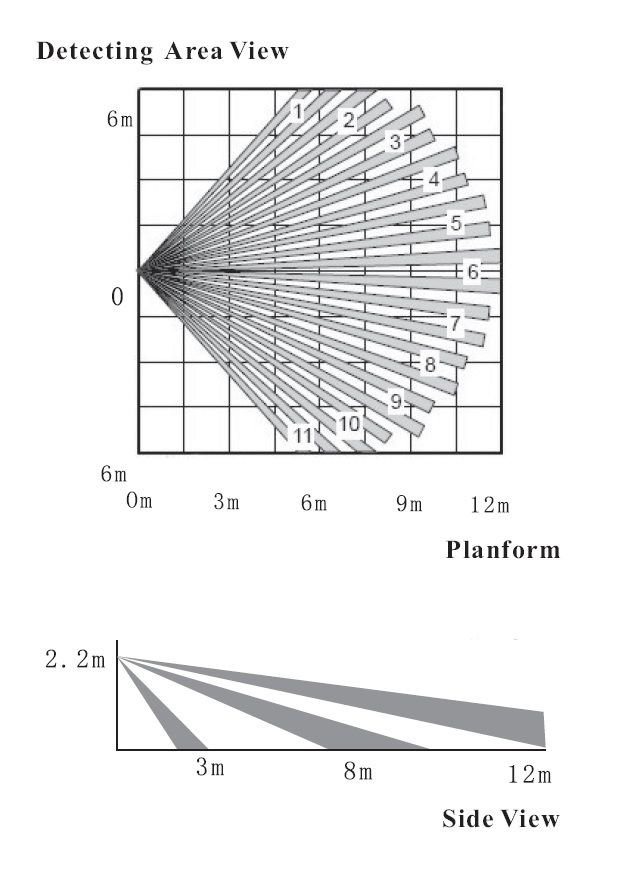

| Detecting distance | 12m |
| Detecting angle | 110 degrees |
| Transmitting freq | 315MHz or 433MHz |
| Transmitting distance | more than 200m (in the open area) |
| Dimension | 107*59*45mm |
Product Pictures
Shipping information
* Express(UPS, DHL, Fedex, EMS, etc) is available.
* Sea and Air delivery is available
* welcome your agent to deal with our products .
Tel: 86- 755-89571625
Fax: 86- 755-89571207
Website: http://cnsumring.en.made-in-china.com
Inquiry now, we will reply you upon receive your email!
