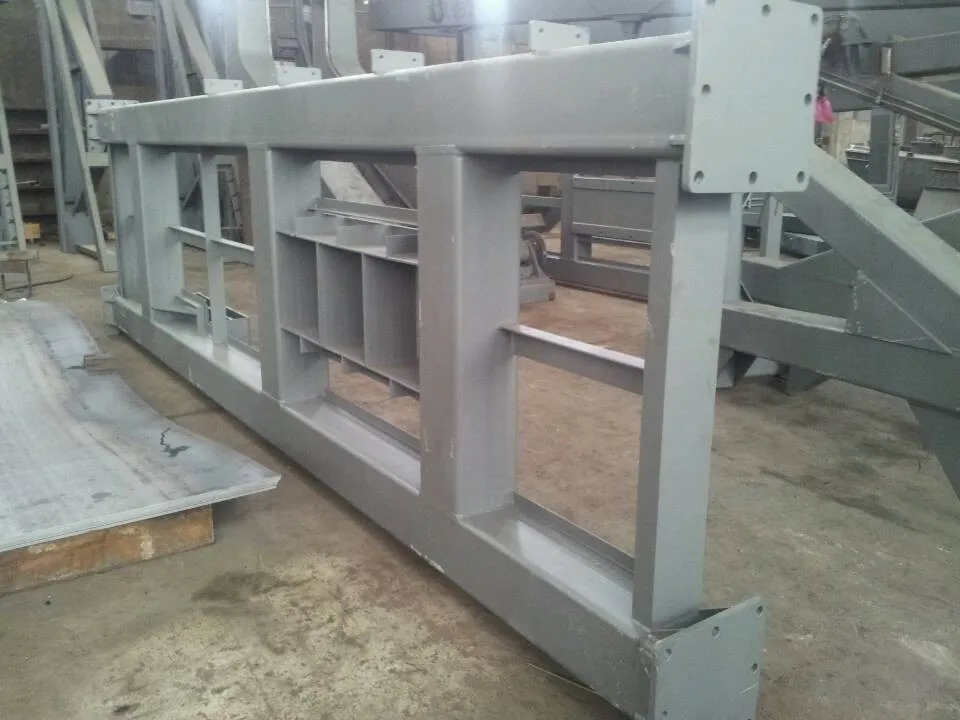

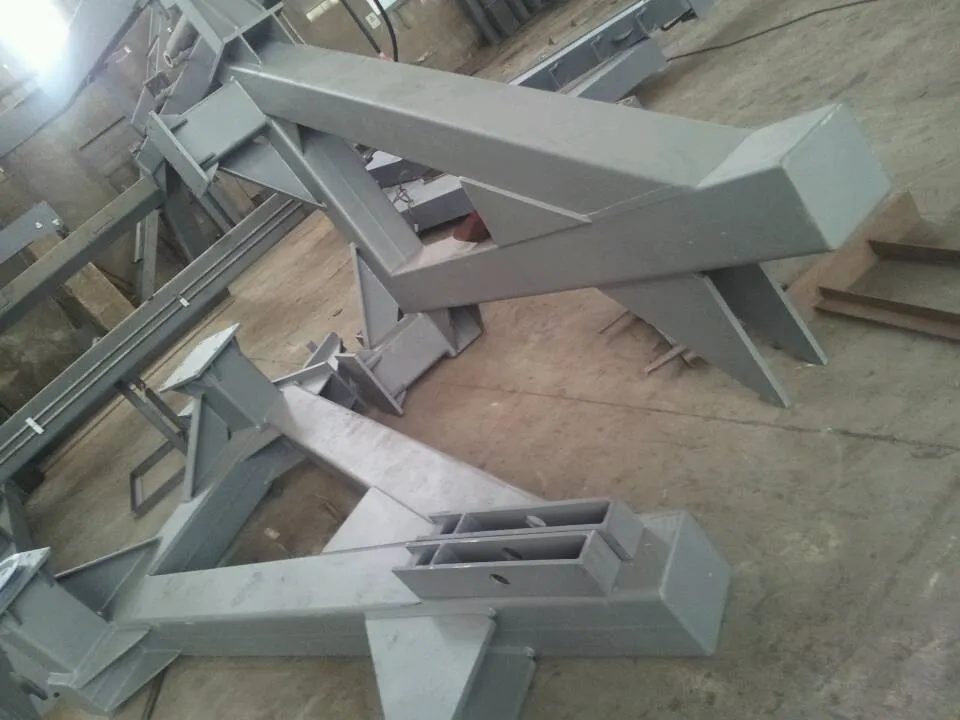

              Electric Rescue Boat & Life Boat Platform Davit
              • Electric Rescue Boat & Life Boat Platform DavitElectric Rescue Boat & Life Boat Platform Davit

              Electric Rescue Boat & Life Boat Platform Davit

              Platform Type Davit For Rescue Boat& Life Boat DescriptionThe platform davit is a special equipment for lowering and recovering boat with winch,which is installed on the platform.The davit conforms to the requirements to SOLAS 1996,IMO Resolution MSC81(70) and MSC.216(82),MSC.218(82) and MSC.226......

              Send Inquiry

              Product Description

                          Platform Type Davit For Rescue Boat& Life Boat

              Description
              The platform davit is a special equipment for lowering and recovering boat with winch,which is installed on the platform.
              The davit conforms to the requirements to SOLAS 1996,IMO Resolution MSC81(70) and MSC.216(82),MSC.218(82) and MSC.226(82)
              Lowering of boat is depending on it's own gravity with no need of any other power.
              The boat is turned out and lowered by means of remote control.
              A permanently mounted motor on the winch is used for hoisting the lifeboat back to the stowed position.

              Certification:CCS/ABS/BV/DNV


              Electric Rescue Boat & Life Boat Platform Davit

              Electric Rescue Boat & Life Boat Platform Davit


              Types

              Model

              Working load(KN)

              Max. Width

              Max.Length

              HYPL50

              50


              2400

                4100

              HYPL85

              85

              2500

                4100

              HYPL125

              125

              2600

                4100

              HYPL150

              150

              2780

                4300

              HYPL170

              170

              3000

                4500

              HYPL210

              210

              3000

                4800


              Model

              Working load(KN)

              Hoisting Load

              Hoisting Speed

              Lowering Speed

              Motor Power (KW)

              HYDP220S

              220

              220

                ≥4

              40-60

              22

              HYDP100S

              100

              100

                ≥5

              40-60

              11

              HYDP145S

              145

              145

                ≥5

              40-60

              18.5

              HYDP180S

              170

              170

                ≥5

              40-60

              20

              HYDP50S

              50

              50

                ≥5

              40-60

              5.5


              Model

              Working load(KN)

              Hoisting Load

              Hoisting Speed

              Lowering Speed

              Motor Power (KW)

              HYDP100Z

              100

              60/100

                ≥8/8

              50-60

              22.5

              HYDP145Z

              145

              80/138

                ≥8/8

              40-60

              30

              HYDP50Z

              50

              45

                ≥8/4

              40-60

              18.5


              Platform davit for rescue boat /life boat
              Capacity : 50KN to 210 KN

              We also have other type of davit, like Gavity luffing are type and free fall type, so if you are interested, please feel free to contact us.


              Company:

              Chongqing Gathering Marine Equipment Co., Ltd.  is a leading manufacturer and supplier of marine equipment from China. Our company was established in 2007.

              We are professional in a hug range of marine equipment especially in Marine propulsion systems, marine external fire fighting system(Fi-Fi), G.R.P Life / Rescue Boats, Marine Environment Protection Equipment & Water Treatment Plant, Marine Life Saving Equipment LSA (Life rafts, life jackets, immersion suit, Life buoy etc), Marine Fire Fighting Equipment FCS( Self-contained Breathing Apparatus SCBA.
              Emergency Escape Breathing Devices EEBD, SCBA Refilling Air Compressor, Fireman Suit, Heat Insulated Suit, Chemical Protective Suit etc.), Load Testing Water Bags and other marine application spare parts. Our products have been approved by IACS, such as CCS, ABS, BV, RINA ,GL, DNV, LR, KR, NK and are in accordance with the latest SOLAS regulation and IMO standard.
