Self- Contained Self-Rescue Oxygen Breathing Apparatus Scba
For Fireman Fire Fighting Material High Quality Air Breathing ApparatusesBreathing Apparatus SCBA is used for personal safety protection in serious pollution or oxygen deficient atmosphere that is IDLH (Immediately Dangerous to Life or Health), or any environment that is unknown or has unknown level......
Send Inquiry
Product Description
For Fireman Fire Fighting Material High Quality Air Breathing Apparatuses

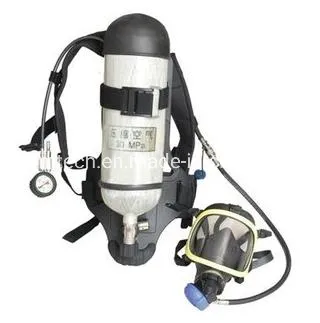

Breathing Apparatus SCBA is used for personal safety protection in serious pollution or oxygen deficient atmosphere that is IDLH (Immediately Dangerous to Life or Health), or any environment that is unknown or has unknown levels of contaminants. SCBA is a device worn by rescue workers, firefighters, and others to provide breathable air in a hostile environment.

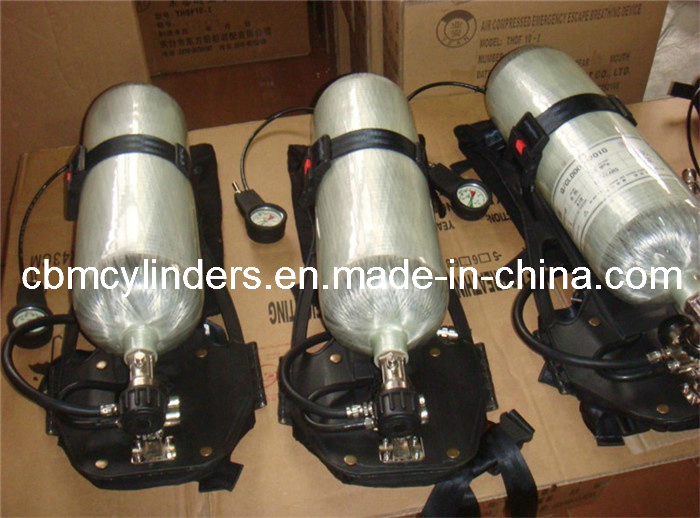

Specs of Life Respirator Fire Fighting Breathing Apparatus Sets(6L):
-Type: CBMCARE6/30
-Air cylinder volume: 6.0L
-Air storage capacity: 1800L
-Normal working pressure: 300Bar
-Alarm pressure: 50-60Bar
-Weight: 21KGS
-Approval Certificate: CCS EC RS
-Packing size: 730*300*450mm
Deatils of each Component:
-1). Full-Face Mask: Wide visual window---highly transparent, strongly wear resistant, and anti-fogging; Head-mounted wearing manner---comfortable and convenient; Silica gel---without toxicity, smell or irritation, but with good air tightness;
-2). Supply Valve: Small, simple and effective, with large air output flow and bypass output;
-3). Waist Belt: Fasten with buckle which is easy to adjust;
-4). Fast Tube Connector: Small, able to be assembled just with one hand, anti-loose;
-5). Pressure Reducer: Small size, light weight, large output flow, stable output pressure;
-6). Cylinder Valve: With high pressure safety device, easy to switch on and off;
-7). Back Support/ Back frame: Carbon fiber material, flame resistance, strong and light, with foam cushion, comfortable to wear;
-8). Shoulder Strap: With flame resistance polyester, length adjustable and with foam cushion, comfortable to wear;
-9). Air Pressure Gauge: Big size meter plate made of luminous material and rubber protective cover, visible in darkness;
-10). Alarming Whistle: Just in front of chest, easy to be heard small size and light; It will be activated when the pressure in the cylinder is lower than 5.5+/-0.5Mpa;
-11). Cylinder Belt: Ratchet buckle construction which ensures the cylinder is strongly fastened;
-12) Air Cylinder: Aluminum cylinder inside, wrapped with carbon fiber, 30Mpa working pressure, light and strong, with high pressure safety device.
This kind of SCBA cylinders are awarded the certificate of inspection by state quality testing center for fire-fighting equipment, and it is up to the China standard of GA124" self-contained open-contained open-circuit compressed air breathing apparatus for fire-fighting, the breathing apparatus for shipping was authorized by the China classification society.
About us:

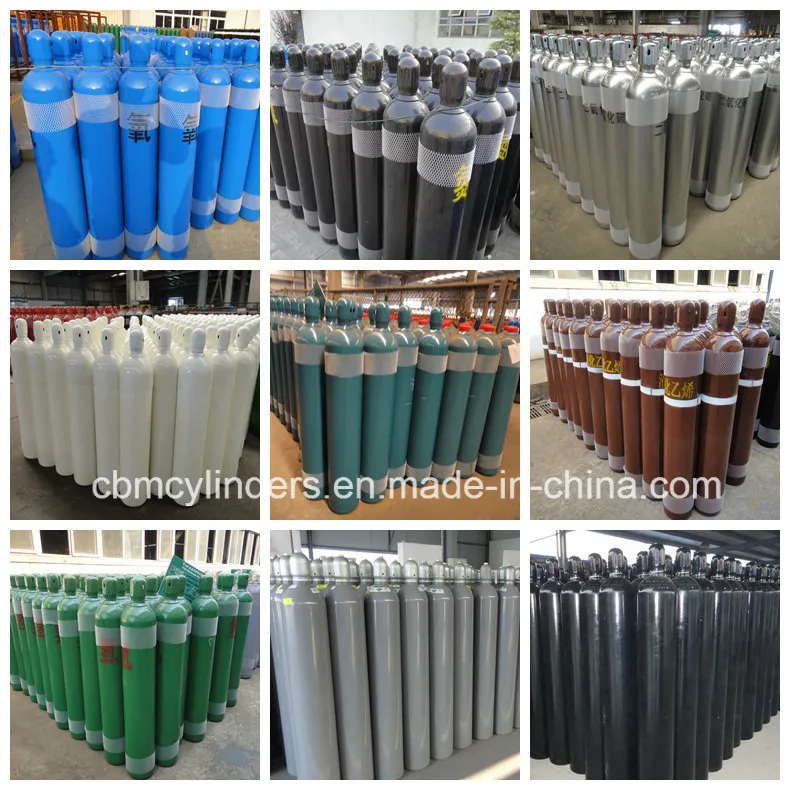

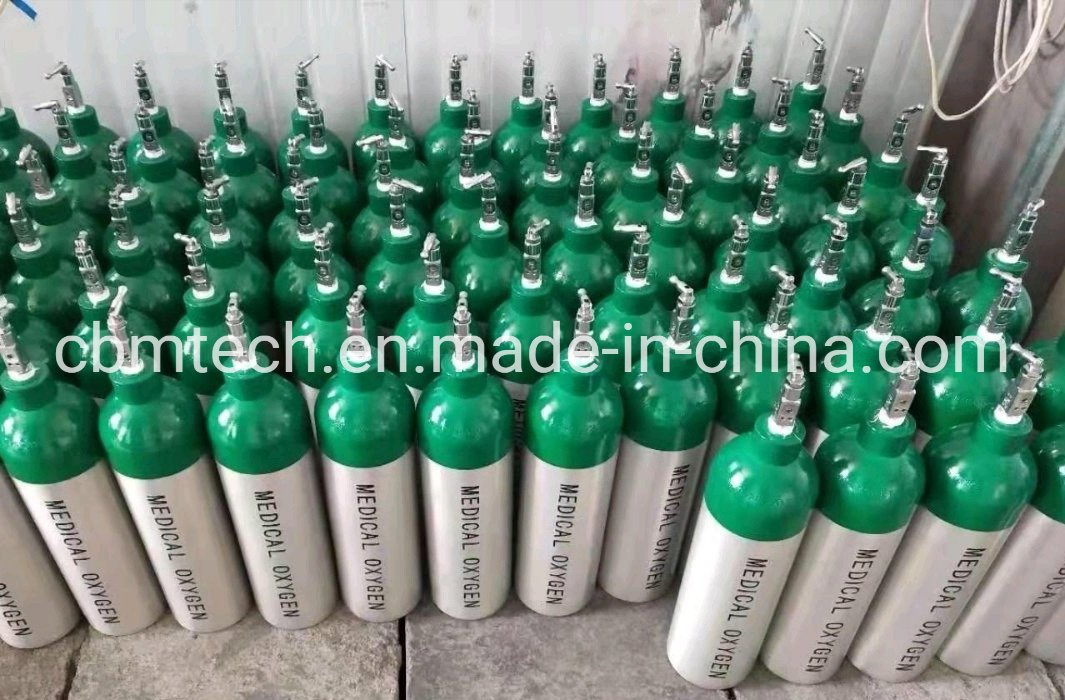

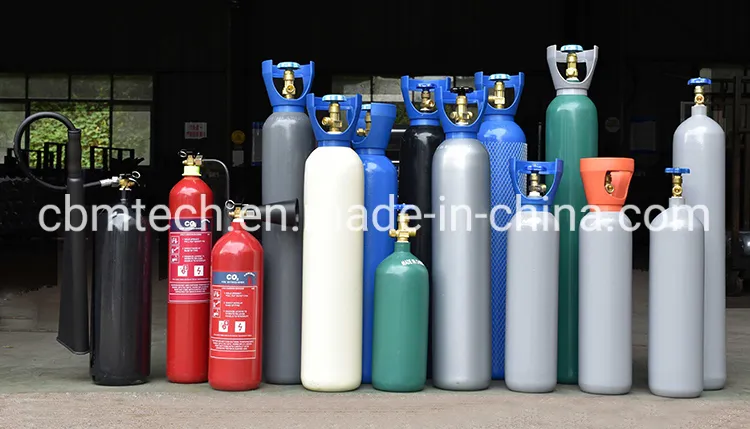

Our Seamless steel gas cylinders are ideal for holding permanent gases and high pressure liquefied gases such as oxygen, hydrogen, nitrogen, argon and carbon dioxide. We can supply all kinds of seamless steel gas cylinders, and the nominal service pressure ranges from 8MPa to 50MPa, while the nominal water capacity ranges from 0.4L to 120L. Also, we can supply cylinders of different pressure, capacity according to your requirements. The majority of the gas cylinder is made of high-quality alloy steel material. They are widely applied in the chemical, metallurgical, mechanical, medical, scientific research and construction industries.
Advantages we have:
-1)Original Manuacturer: Our factories have professional equipments for gas cylinders, medical oxygen regulators, like Punch, CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Gas Cylinders & 30, 000 PCS Medical Oxygen Cylinders each month;
-3)Quality Control: With ISO9001: 2008, ISO 13485 Quality Management system; All products have been tested before out of our factories;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =50 PCS;
-7)Exporting experience: We have over 5 years' experience for exporting business.
What we can promise for you:
*High quality and security gas cylinders;
*Competitive unit price in the market;
*Fast delivery (3~4 weeks);
*Best after-sale service.
Should you have any interest pls feel free to back to contact us. Looking forward to receiving your early kind enquiry, and hoping that some day we can become good partners.
Key Contact: Ethan Liu (Exp. Mgr)
URL: http://cbmtech.en.made-in-china.com; http://cbmtech.en.made-in-china.com
Breathing Apparatus SCBA is used for personal safety protection in serious pollution or oxygen deficient atmosphere that is IDLH (Immediately Dangerous to Life or Health), or any environment that is unknown or has unknown levels of contaminants. SCBA is a device worn by rescue workers, firefighters, and others to provide breathable air in a hostile environment.Specs of Life Respirator Fire Fighting Breathing Apparatus Sets(6L):
-Type: CBMCARE6/30
-Air cylinder volume: 6.0L
-Air storage capacity: 1800L
-Normal working pressure: 300Bar
-Alarm pressure: 50-60Bar
-Weight: 21KGS
-Approval Certificate: CCS EC RS
-Packing size: 730*300*450mm
Deatils of each Component:-1). Full-Face Mask: Wide visual window---highly transparent, strongly wear resistant, and anti-fogging; Head-mounted wearing manner---comfortable and convenient; Silica gel---without toxicity, smell or irritation, but with good air tightness;
-2). Supply Valve: Small, simple and effective, with large air output flow and bypass output;
-3). Waist Belt: Fasten with buckle which is easy to adjust;
-4). Fast Tube Connector: Small, able to be assembled just with one hand, anti-loose;
-5). Pressure Reducer: Small size, light weight, large output flow, stable output pressure;
-6). Cylinder Valve: With high pressure safety device, easy to switch on and off;
-7). Back Support/ Back frame: Carbon fiber material, flame resistance, strong and light, with foam cushion, comfortable to wear;-8). Shoulder Strap: With flame resistance polyester, length adjustable and with foam cushion, comfortable to wear;
-9). Air Pressure Gauge: Big size meter plate made of luminous material and rubber protective cover, visible in darkness;
-10). Alarming Whistle: Just in front of chest, easy to be heard small size and light; It will be activated when the pressure in the cylinder is lower than 5.5+/-0.5Mpa;
-11). Cylinder Belt: Ratchet buckle construction which ensures the cylinder is strongly fastened;
-12) Air Cylinder: Aluminum cylinder inside, wrapped with carbon fiber, 30Mpa working pressure, light and strong, with high pressure safety device.
This kind of SCBA cylinders are awarded the certificate of inspection by state quality testing center for fire-fighting equipment, and it is up to the China standard of GA124" self-contained open-contained open-circuit compressed air breathing apparatus for fire-fighting, the breathing apparatus for shipping was authorized by the China classification society.| Model | Working pressure | Volume | Air Deposit | Using Time | Alarm Pressure | Weight | Packing | Notes |
| (MPa) | (L) | (L) | (min) | (MPa) | (kg) | (mm) | ||
| CBMCARE5/30 | 30 | 5 | 1500 | 40-50 | 4 - 6 | ≤16 | 710×290×430 | Steel air cylinder |
| CBMCARE 6/30 | 30 | 6 | 1800 | 50-60 | 4 - 6 | ≤18 | 710×290×430 | |
| CBMCARE 6.8/30 | 30 | 6.8 | 2040 | 50-60 | 4 - 6 | ≤12 | 710×290×430 | Carbon fibre air cylinder |
| CBMCARE 9/30 | 30 | 9 | 2700 | 80-90 | 4 - 6 | ≤16 | 710×290×430 |
About us:Our Seamless steel gas cylinders are ideal for holding permanent gases and high pressure liquefied gases such as oxygen, hydrogen, nitrogen, argon and carbon dioxide. We can supply all kinds of seamless steel gas cylinders, and the nominal service pressure ranges from 8MPa to 50MPa, while the nominal water capacity ranges from 0.4L to 120L. Also, we can supply cylinders of different pressure, capacity according to your requirements. The majority of the gas cylinder is made of high-quality alloy steel material. They are widely applied in the chemical, metallurgical, mechanical, medical, scientific research and construction industries.
Advantages we have:-1)Original Manuacturer: Our factories have professional equipments for gas cylinders, medical oxygen regulators, like Punch, CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Gas Cylinders & 30, 000 PCS Medical Oxygen Cylinders each month;
-3)Quality Control: With ISO9001: 2008, ISO 13485 Quality Management system; All products have been tested before out of our factories;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =50 PCS;
-7)Exporting experience: We have over 5 years' experience for exporting business.
What we can promise for you:*High quality and security gas cylinders;
*Competitive unit price in the market;
*Fast delivery (3~4 weeks);
*Best after-sale service.
Should you have any interest pls feel free to back to contact us. Looking forward to receiving your early kind enquiry, and hoping that some day we can become good partners.
Key Contact: Ethan Liu (Exp. Mgr)URL: http://cbmtech.en.made-in-china.com; http://cbmtech.en.made-in-china.com
