Product Description

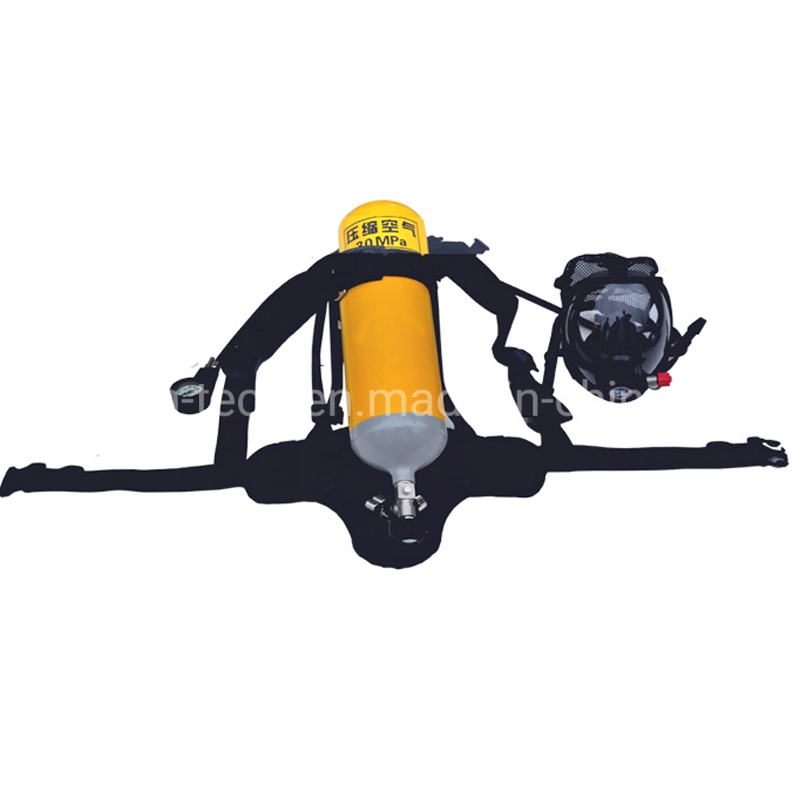

Self Contained Open Circuit Compressed Air Breathing Apparatus

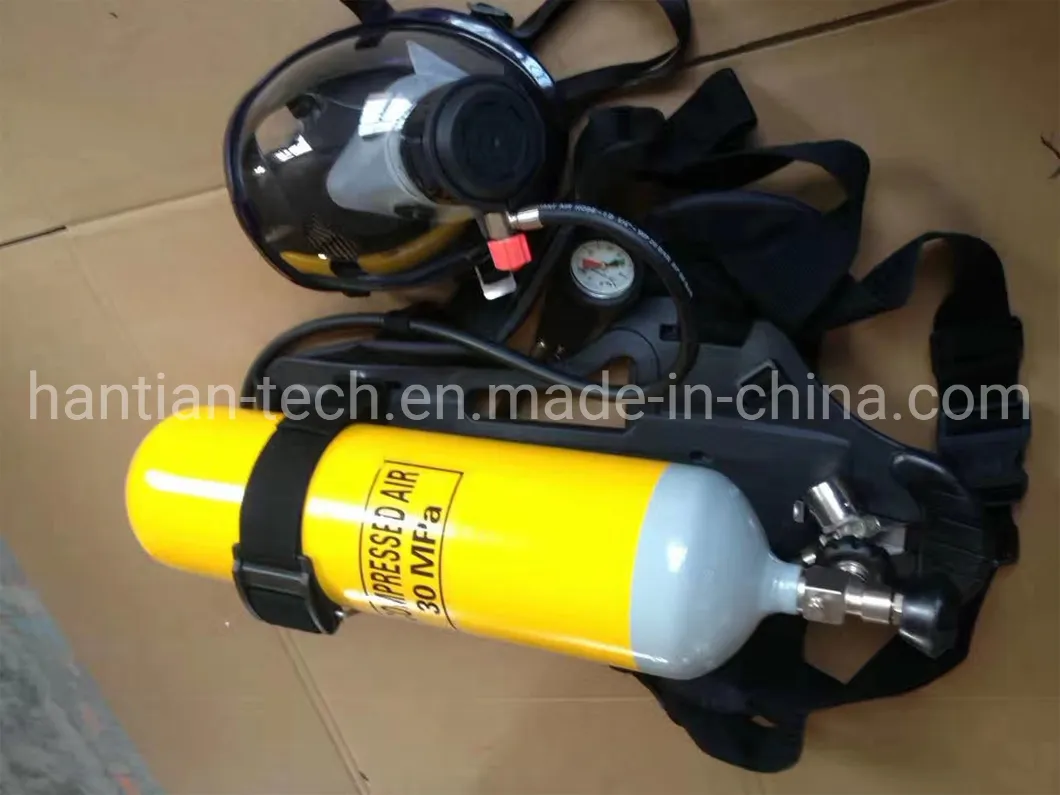

Fireman Air Breathing Apparatus is a new model of self supporting open respirator, which is widely used in fire-fighting, chemistry industry, fired boat, petroleum industry, smelt ,mine and transportation. It is a high-performance respiratory positive device designed for fireman and special trained person when trapper in the situation with smoke, pollution, hot vapor and/or hypoxygen, to perform the extinguish, rescue and ambulance.
Positive pressure fireman Air Breathing Apparatus is a kind of self-support one, and meets the requiremnts of Standard GA124 "Positive pressure breathing apparatus" and EN 137. Positive pressure fireman breathing apparatus for ships are meet China Classification Society (CCS) and Germany Classification (GL) EC Standard.
Details

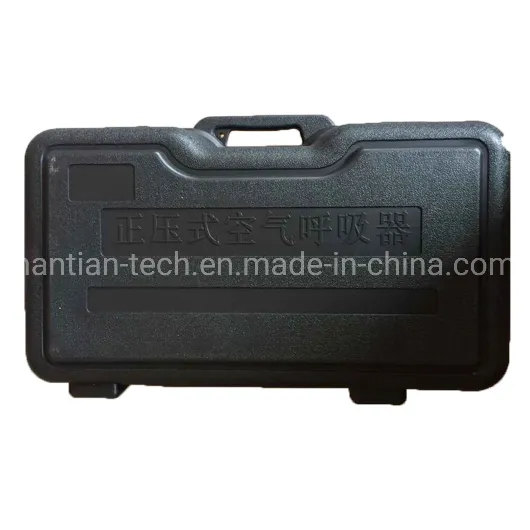

Package
Positive pressure fireman Air Breathing Apparatus is a kind of self-support one, and meets the requiremnts of Standard GA124 "Positive pressure breathing apparatus" and EN 137. Positive pressure fireman breathing apparatus for ships are meet China Classification Society (CCS) and Germany Classification (GL) EC Standard.
| Breathing Apparatus Specification and types | |||||||
| Type | Working Pressure of Cylinder(Mpa) | Cylinder Volume(L) | Alert Pressure (Mpa) | Duration (min) | Weight(kg) | Packing Dimension (cm) | Remark |
| RHZK-5/30 | 30 | 5 | 5-6 | 50 | 14 | 77*30*49 | steel cylinder |
| RHZK-6/30 | 30 | 6 | 5-6 | 60 | 15 | 77*30*49 | steel cylinder |

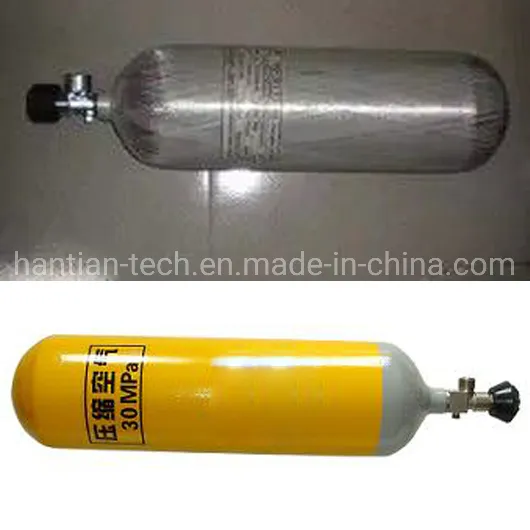

| RHZKF-6.8/30 | 30 | 6.8 | 5-6 | 60 | 10.5 | 77*30*49 | Carbon fiber cylinder |
| RHZKF-6.8/30 | 30 | 6.8 | 5-6 | 60 | 10.5 | 77*30*49 | with other connector |
| RHZKF-9/30 | 30 | 9 | 5-6 | 90 | 11.5 | 77*30*49 | Carbon fiber cylinder |
| RHZKF-3/30 | 30 | 3 | 5-6 | 30 | 5 | 77*30*49 | Vest-type |
| RHZKF-2/30 | 30 | 2 | 5-6 | 20 | 4 | 77*30*49 | Vest-type |
| RHZKF-6.8*2/30 | 30 | 2*6.8 | 5-6 | 120 | 17 | 77*30*49 | Double cylinder |
