Product Description

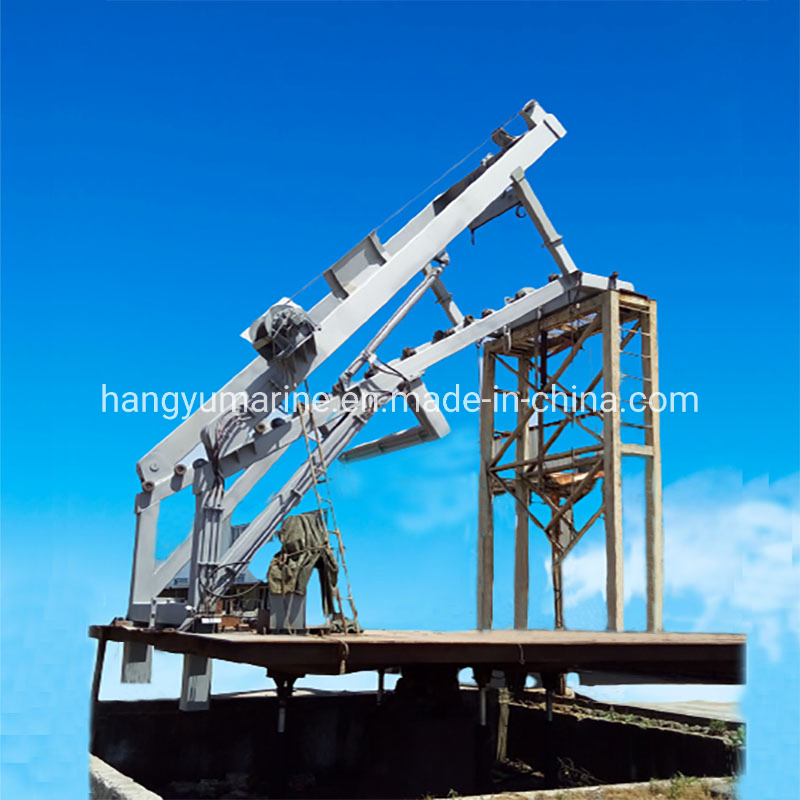

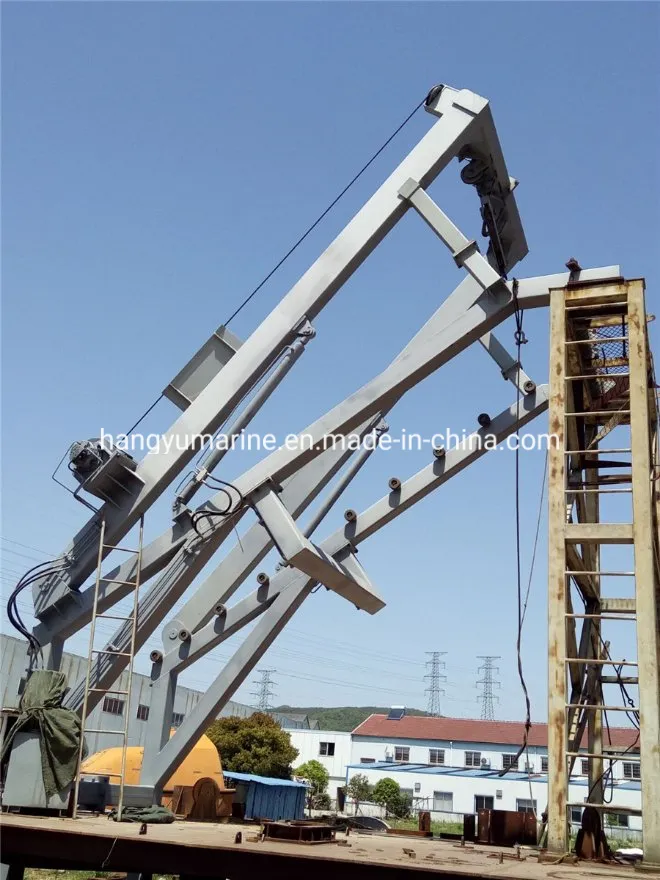

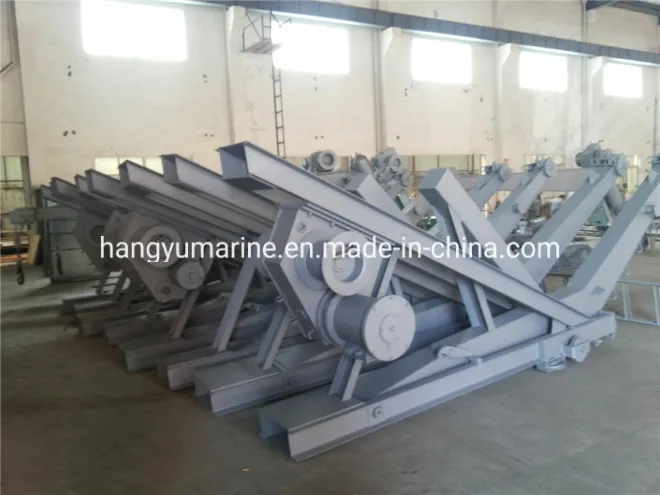

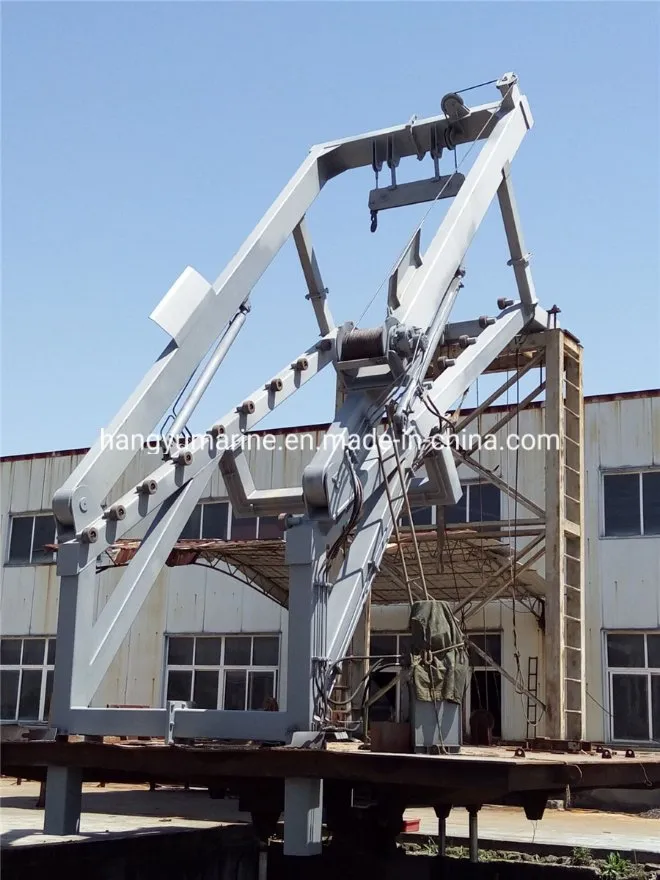

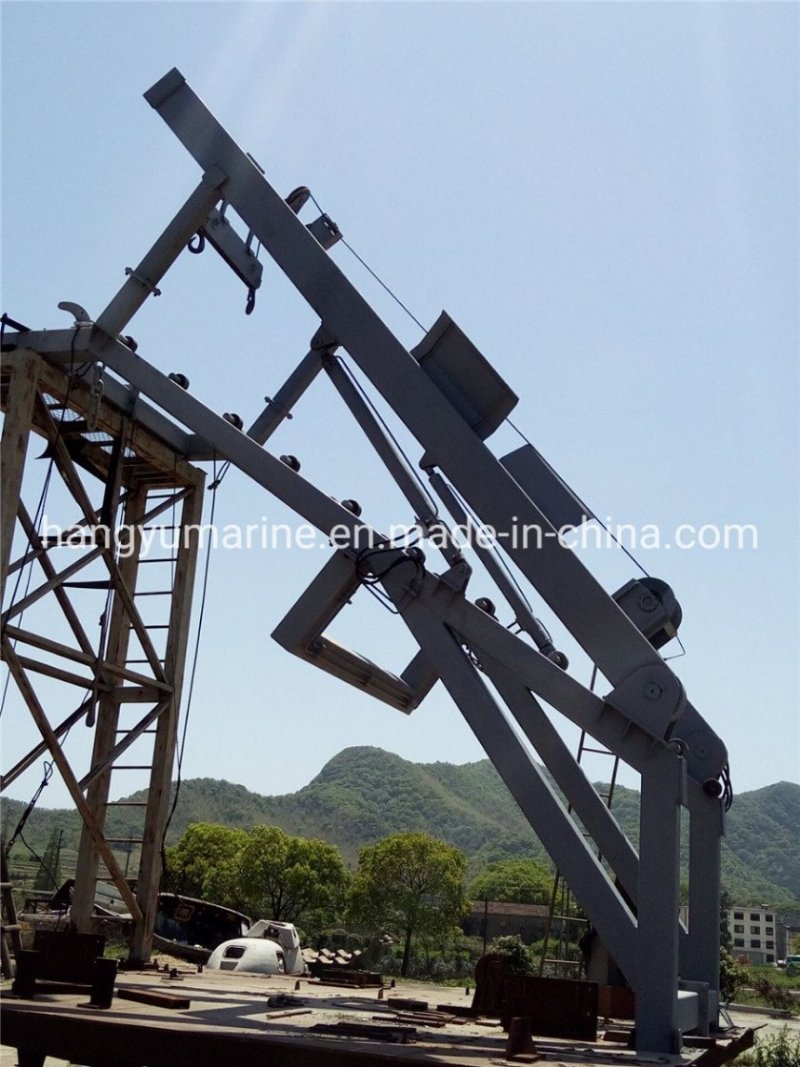

Solas CCS/ABS/BV/RS Approval Freefall Lifeboat Davit

Description of Free Fall Life Boat Davit:
This davit conforms to the requirements of the Amendments to SOLAS MSC.47(66)&MSC.48(66),IMO Resolution MSC81(70) and MSC.216(82),MSC.217(82) and MSC.226(82)

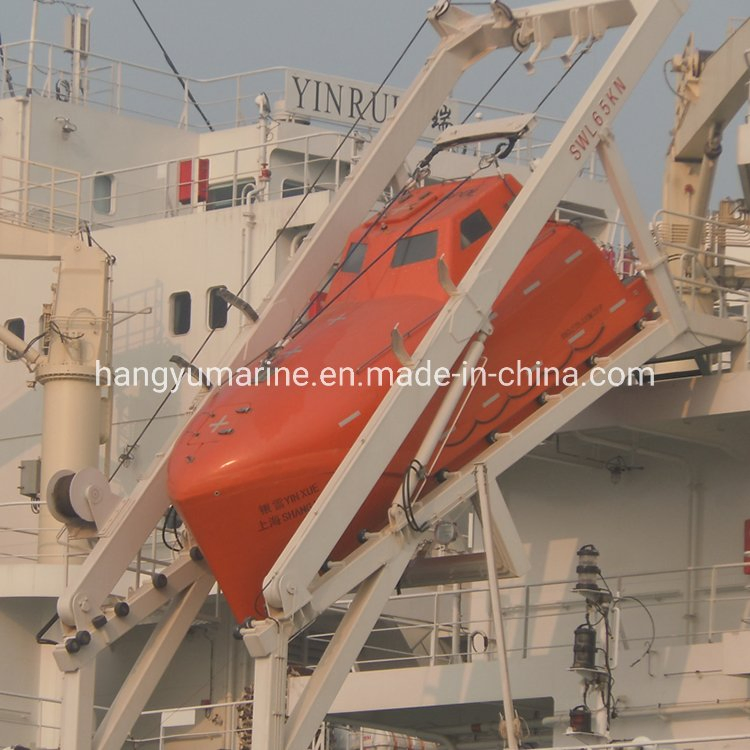

The Launching appliance is a specialized equipment for launching and recovering free-fall lifeboat
In an emergency condition, the Lifeboat can be launched into the water fast.
Certification:CCS/ABS/BV/EC

Technical Data of Free Fall Life Boat Davit:

Particulars Model	GRF55	GRFA65	GRF70	GRFA75	GRFA100	GRFH145
Max working load(kN)	55	65	70	75	100	145
Max Hoisting load(kN)	42	42	45	50	60	90
Hoisting speed (m/min)	≥3.0
Ramp angle	35°

Related Products:
Single Arm Rescue Boat Davit
Slewing Davit for Life Raft & Rescue boat

Technical Data of Rescue Boat Davit:

Particulars Model	GR-SAP21	GR-SA21A	GR-SAF23	GR-SA25	GR-SA30	GR-SA35
S.W.L (Kn)	21	21	23	25	30	35
Hoisting Load (Kn)	14	21	14	25	30	21
Slewing Load (Kn)	14	21	14	25	30	21
Slewing Radius (m)	3.5~7.5m	4~5m	5~7m	4~5m	4~5.8m	4~4.5m
Total weight (kg)	~2800	~2800	~3200	~3200	~3300	~3350
Suitable Boat	For Rescue Boat&Life Raft&Crane

Solas CCS/ABS/BV/RS Approval Freefall Lifeboat Davit

Technical data of Gravity Luffing Arm Type Davit

Particulars Model	GRL25	GRL50	GRL65	GRGH90	GR-LE150	GRGH170
Working load(kN)	25	50	65	90	155	170
Min Lowering Load(kN)	13	25	25	42	68	80
Hoisting load(kN)	17	28	42	50	110	100
Incline limit	List ≤20° Trim≤10°
