Product Description

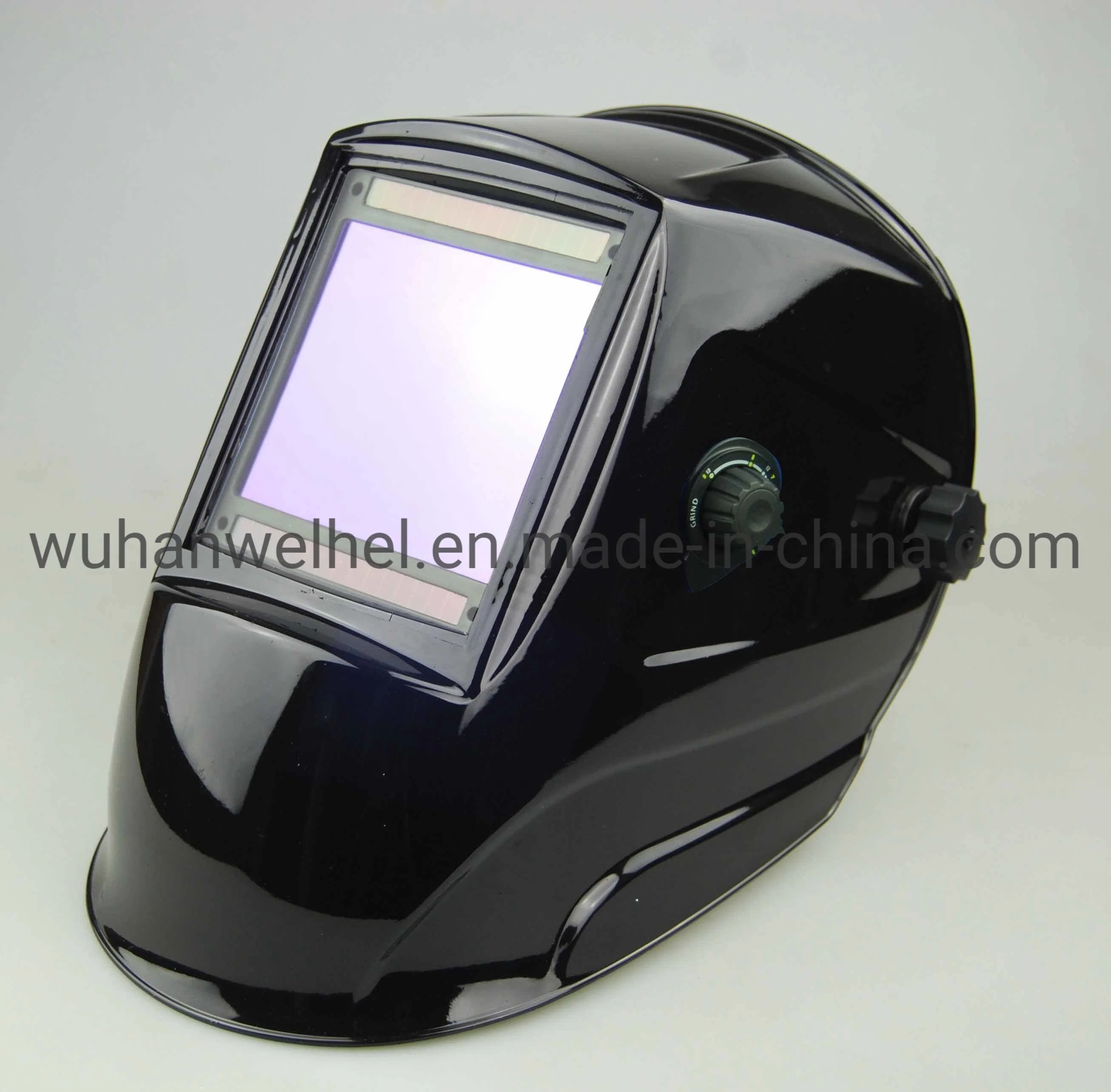

Super Viewing Welding Helmet (WH9801)

a. This product is of completely new design, with shell material high-and-low temperature resistant, corrosion resistant, flame retardant, soft, light tight, intensity high and durable

b. Clear vision on the work piece both prior and welding, which means improved quality and higher efficiency

c. Overall-process protection against ultraviolet and infrared ratiation. WH8000 is equipped with lithium battery and solar cells that extends the life of the battery.

d. The product is in full conformity with related ANSI, CE, CSA, AS/NZS safety

e. Special feature: equipped with 4 arc sensors, more sensitive and professional. 100*97mm big viewing size makes welding work much easier and comportable

WH9000 SERIERS

Welding Mask Model: WH9000

Auto Darkening Welding Filter Option:
WH801, WH602, WH603, WH604

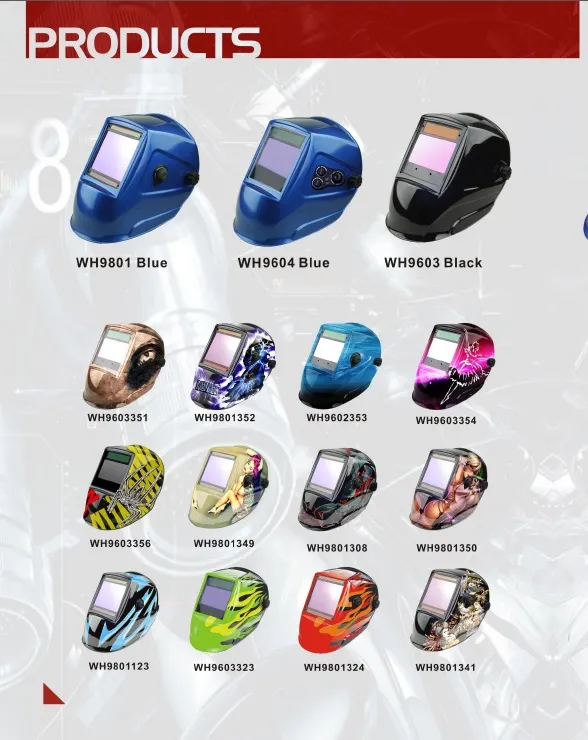

Color Available: blue/black/silver/red/other pattern

Brand: Welhel/ Neutral package/ OEM

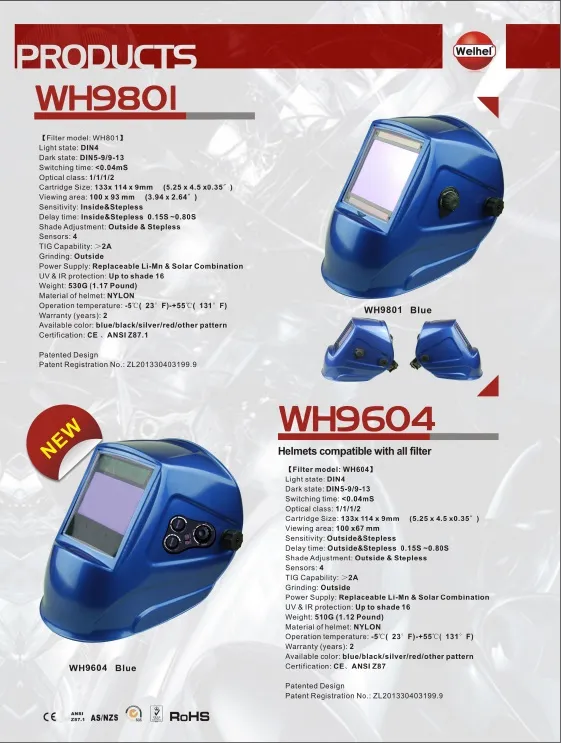

Super Viewing TIG/MIG Auto Darkening Automatic Welding Helmet / Grinding Mask (WH9801)

Parameter of Filter model: WH801

Light state: DIN4

Dark state: DIN5-9/9-13

Switching time: <1/25,000S at Room Temperature

Cartridge Size: 133 x 114x 9mm (5.25" x 4.5" x 0.35")

Viewing area: 100x93 mm (3.94" x 3.66")

Sensitivity: Stepless Adjustment

Delay time: Stepless Adjustment 0.15S ~0.80S

Shade Adjustment: Outside & Stepless

Sensors: 4 Optical class: 1/1/1/2

TIG Capability: >2A
Grinding

Power Supply: Replaceable Li-Mn & Solar Combination

UV & IR protection: Up to shade 16
Certification: CE ANSI ROHS

Warranty (years): 2

Weight: 495G (1.09 Pound)

Material of helmet: NYLON
Patented Design
Patented Registration No.:ZL201330403199.9

Other Auto Darkening Welding Filter Options

for WH9000 series:

AUTO DARKENING LENS SPECIFICATIONS
		EXPERT
MODEL		WH800 Series	WH600 Series			WH900 Series
		WH801	WH602	WH603	WH604	WH913	WH912
Cartridge Size (mm)		133*114	133*114			110 x 90
Lens Thickness (mm)		9				8
Viewing Window Size (mm)		100*93	100*67
Weight (g)		170	160	150	179	108
Light State		DIN4
Dark State		DIN5-9/9-13				DIN9-13
Switching time (ms)		0.04
Delay time Adjustment	Inside & Stepless (0.15~0.80s)	√				√
	Inside & Switch (Fast/Slow 0.25s/0.70s)
	Outside & Stepless				√
Sensitivity Adjustment	Inside & Stepless	√				√
	Inside & Switch (Low/High)
	Outside & Stepless				√
Shade Adjustment	Outside & Stepless	√	√		√	√	√
	Inside & Stepless			√
Sensors		4			4	2
Grinding	Outside	√			√	√
	Inside			√
Power Supply	Solar power & Lithium Battery combination
	Solar power & replaceable battery	√
	Solar power & rechargeable battery
TIG Capability		≥2A
Warranty (years)		2
	Optical class	1/1/1/2
Certification	CE EN379	√
	ANSI Z87.1	√
	GS					√
